PVC Boom

Inquire Now Next Product

description

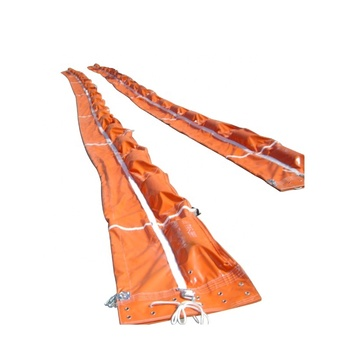

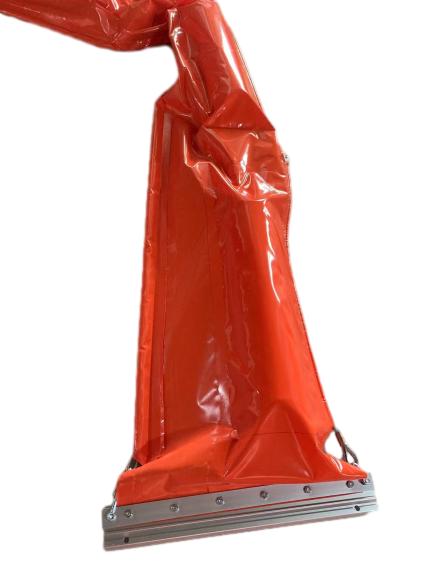

PVC Boom

- Durable and Oil-Resistant Material: Made from high-strength PVC fabric with excellent resistance to oil, sunlight, and deterioration, ensuring long-lasting performance and low maintenance

- High Buoyancy and Stability: Equipped with solid floats or foam-filled structures, providing high reserve buoyancy and stability in waves, making it suitable for calm waters, rivers, lakes, and offshore platforms

- Easy Deployment and Customization: Available in various sizes and lengths (e.g., 600-1500 mm height, 20m per section), with options for quick connectors and custom configurations to meet specific needs

Model Parameter	JAS600	JAS700	JAS750	JAS800	JAS900	JAS1000
Overall height (mm)	600	700	750	800	900	1000
Freeboard (mm)	150	210	260	280	320	340
Draft (mm)	380	390	400	420	490	540
Standard length per section(m)	20
Tensile strength (KN)	20	25	30	45	55	75
Max wave height to withstand(m)	0.5	0.5	1	1.5	1.8	2
Max wind speed to withstand (m/s)	8	10	10	15	15	18
Max current speed to withstand (KN)	1	1	1.5	1.5	2	2.5
Packing dimensions for 20m	1x1x0.6	1.2x1x1	1.2x1x1	1.3x1.1x1.1	1.4x1.5x1.2	1.4x1.6x1.3
